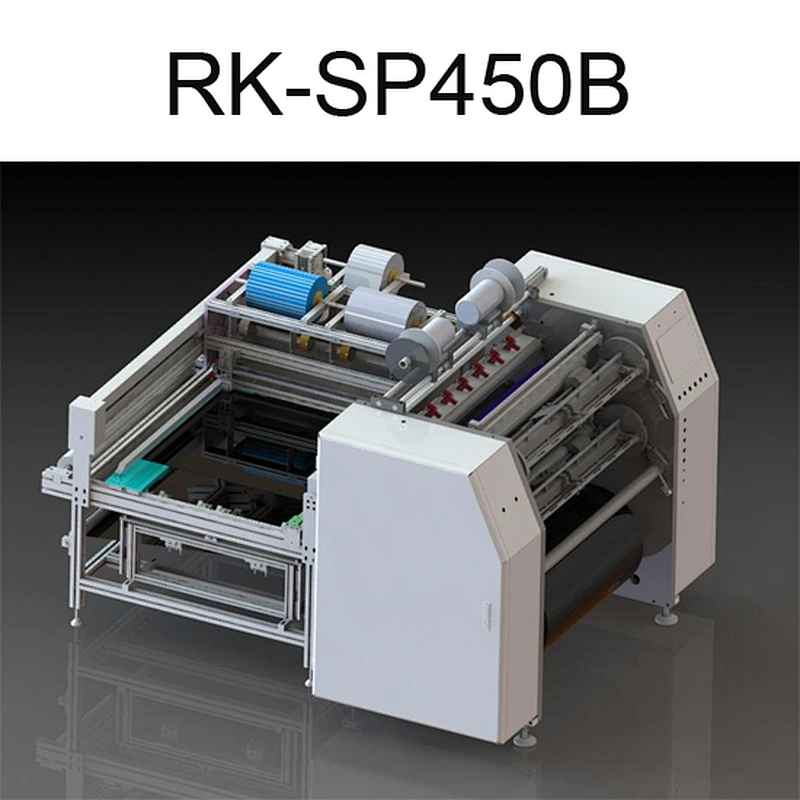

thermal transfer ribbon slitter specification Machine speed: 450m/min（It’s not only a design speed machinecan keep working on this speed ） Machine size:2300*2800*1800 Machine main steel sheet thickness: 40mm Machine Weight:2500kgs
thermal transfer ribbon slitter Unwind: Shaftless clamp fixing system for Jumbo roll Max Jumbo width: 1050mm (other width on request) Jumbo outer diameter: 600mm Jumbo core diameter: 6 inch (other diameter on request) Max Jumbo weight: 200 kgs Electronically Jumbo left/right side adjustment Servo drive system, automatic unwind tension control Lights for ribbon quality monitoring
thermal transfer ribbon slitterRewind: Two rewind positions, Turret each position Max rewind diameter: 125mm Rewind width: 25mm-1010mm(smaller width on request) Two servo driver system for winding positions, automatic tension control. Pneumatic driver pressing roller for ribbon winding 5pcs 1 inch air expanding shaft Shaft support for air expanding shaft Option: 5pcs 1/2 inch air expanding shaft.
thermal transfer ribbon slitter Slitting system: Magnetic blade fixture, 30pcs per machine Pneumatic droved blade holder shaft.
thermal transfer ribbon slitter Leader and trailer table: Automatic leader and trailer table Waste free leader and trailer station, saved 0.8 m ribbon each time when doing the packaging.
thermal transfer ribbon slitter Waste edge rewinder: Two units waste edge rewinder to collect the waste edge each side. Waste edge auto tension control. Automatically adjust the waste edge rewinder left/right position.
thermal transfer ribbon slitter Electronic parts and power supply: Touch screen 4 units Sanyo servo motor Siemens PLC Power: 8Kw Electric: 200V/3PH 50HZ Air supply: 0.6-0.8 Mpa
Feature of thermal transfer ribbon slitting machine: A. thermal transfer ribbon slitter speed: 450m/min（It's not only a design speed, machine can keep working on this speed） B. thermal transfer ribbon slitter Tension control: Fully auto C. 4 units Sanyo servo motor and Siemens PLC D. Perfect ribbon slitting result. E. The fastest and most professional TTR slitting machine in China.
Application TTR slitting machine professional for slitting:TTR, Barcode Ribbon, Fax Ribbon,Thermal transfer ribbon Hot Stamping Foil,other foil and film. TTR sitter achieves a small footprint, is easy to use, and can run production stably.The intelligent and convenient operation mode makes the slitting easier. The main controller adopts German Siemens programmable PLC, which has fast running speed, high slitting precision, smooth winding and uniform tension control. Application TTR slitting machine professional for slitting: TTR, Barcode Ribbon, Fax Ribbon, Hot Stamping Foil, other foil and film.
