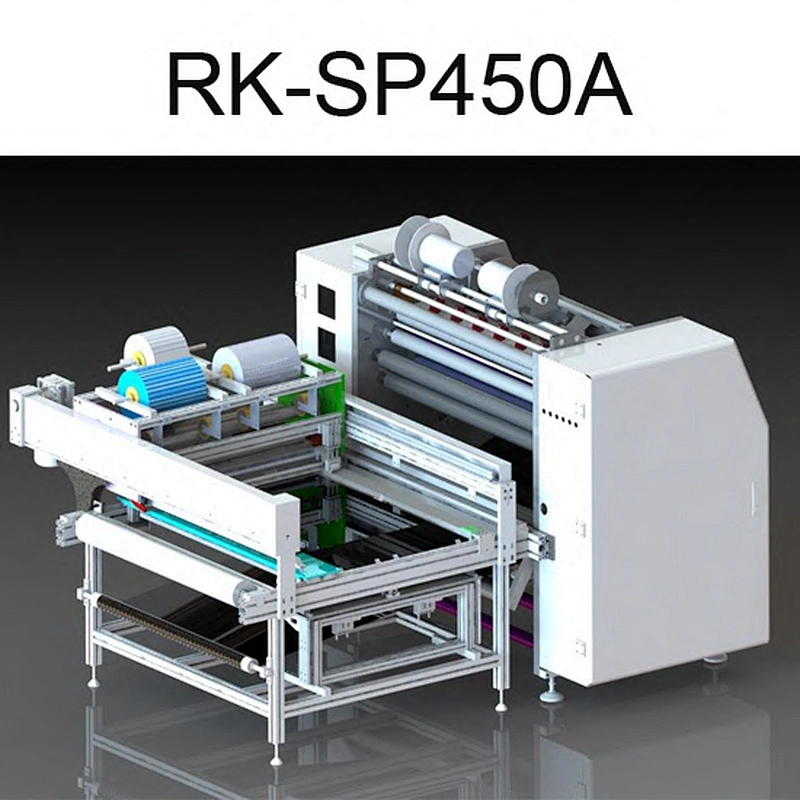

Model NO.: RK-SP450A

Quantity:

Product Description

Fully automatic TTR slitter:
Machine speed: 450m/min（It’s not only a design speed, machine can keep working on this speed）
Machine size: 2300*2800*1800
Machine main steel sheet thickness: 40mm

TTR slitter Unwind:
Shaftless clamp fixing system for Jumbo roll
Max Jumbo width: 1050mm (other width on request)
Jumbo outer diameter: 600mm
Jumbo core diameter: 6 inch (other diameter on request)
Max Jumbo weight: 200 kgs
Electronically Jumbo left/right side adjustment
Servo drive system, automatic unwind tension control
Lights for ribbon quality monitoring

TTR slitter REWIND:
Two rewind positions, Turret each position
Max rewind diameter: 125mm
Rewind width: 25mm-1010mm(smaller width on request)
Two servo driver system for winding positions, automatic tension control.
Pneumatic driver pressing roller for ribbon winding
5pcs 1 inch air expanding shaft
Shaft support for air expanding shaft
Option: 5pcs 1/2 inch air expanding shaft.

TTR slitter slitting system:
Magnetic blade fixture, 30pcs per machine
Pneumatic droved blade holder shaft.

TTR slitter leader and trailer table:
Automatic leader and trailer table
Waste free leader and trailer station, saved 0.8 m ribbon each time when doing the packaging.
Waste edge rewinder:
Two units waste edge rewinder to collect the waste edge each side.
Automatically adjust the waste edge rewinder left/right position.
Electronic parts and power supply:
Touch screen
4 units Sanyo servo motor
Siemens PLC
Power: 10K
Tension Control: Fully Automatic
Electric: 380V/3PH or 220V/single phase 50/60HZ
Air supply: 0.6-0.8 Mpas
Keyselling Points:Easy to operate
Packaging Material: Plastic, International Standard Packing
Packaging Type: Inetrnational Standard Packing
Leader Table: Automatic
Place of Origin: Shenzhen, China
Brand Name:RIKONG
Certification: CE

Feature TTR slitter:
A. Machine speed: 450m/min（It's not only a design speed, machine can keep working on this speed）
B. Automatic tension control.
C. 4 units Sanyo servo motor and Siemens PLC
D. Perfect slitting effect.
E. The fastest and most professional TTR slitting machine in China.
