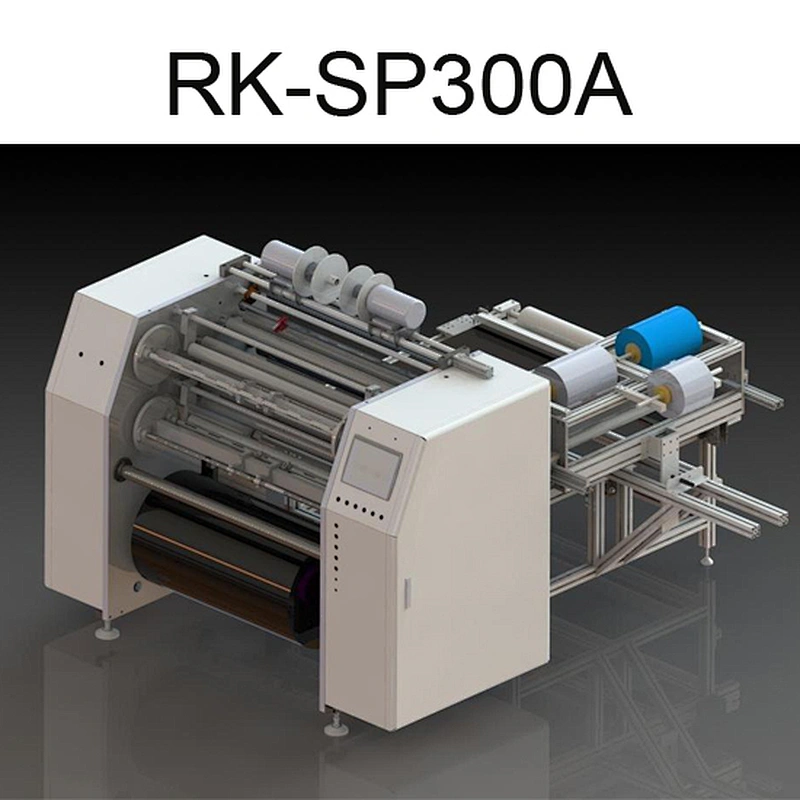

Barcode ribbon slitter

Model NO.: RK-SP300A

Quantity:

Product Description

barcode ribbon slitter
Machine speed: 300m/min（it’s not only a design speed, machine can keep working on this speed）
Machine size: 2000*2500*1700mm
Machine main steel sheet thickness: 30mm
Machine Weight: 1700kgs
barcode ribbon slitter Unwind:
Shaftless clamp fixing system for Jumbo roll
Max Jumbo width: 1050mm (other width on request)
Jumbo outer diameter: 600mm
Jumbo core diameter: 6 inch (other diameter on request)
Max Jumbo weight: 200 kgs
Electronically Jumbo left/right side adjustment
Servo drive system, automatic unwind tension control
Lights for ribbon quality monitoring
barcode ribbon slitter Rewind:
Two rewind positions, Turret each position
Max rewind diameter: 125mm
Rewind width: 25mm-1010mm(smaller width on request)
Two servo driver system for winding positions, automatic tension control.
Pneumatic driver pressing roller for ribbon winding
5pcs 1 inch air expanding shaft
Option: 5pcs 1/2 inch air expanding shaft.
barcode ribbon slitter Slitting system:
Magnetic blade fixture, 30pcs per machine
Pneumatic driver blade holder shaft.
barcode ribbon slitter Leader and trailer table:
Semi-auto leader and trailer table
Waste free leader and trailer station, saved 0.8 m ribbon each time when doing the packaging.
barcode ribbon slitter Waste edge rewinder:
Two units waste edge rewinder to collect the waste edge each side.
Waste edge manual tension control.
Manual adjust the waste edge rewinder left/right position.
barcode ribbon Electronic parts and power supply:
Touch screen
4 units Sanyo servo motor
Siemens PLC
Power: 7Kw
Electric: Single phase 220V 50HZ
Air supply: 0.6-0.8 Mpa
