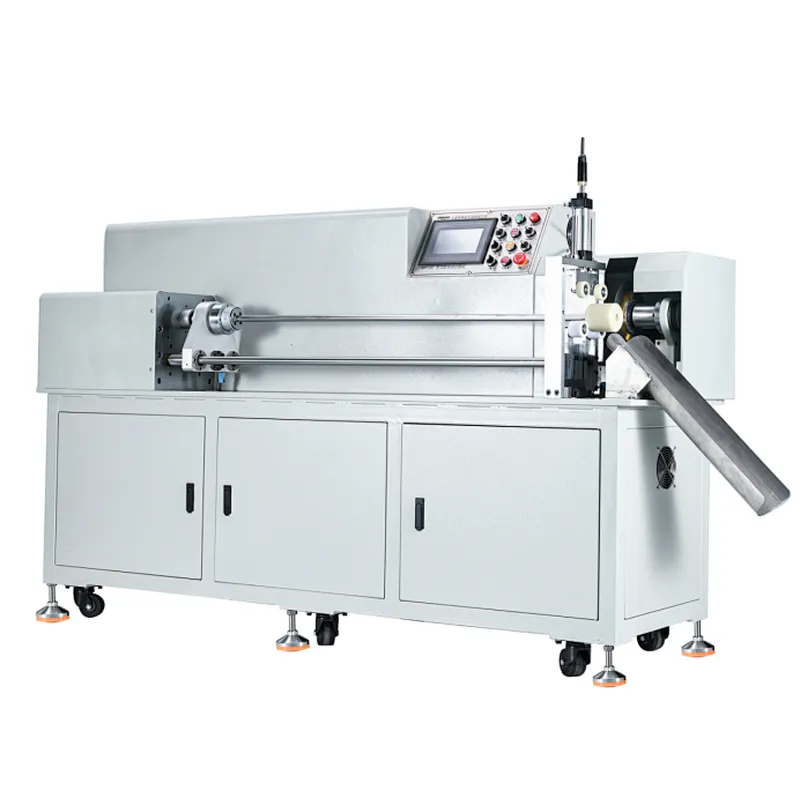

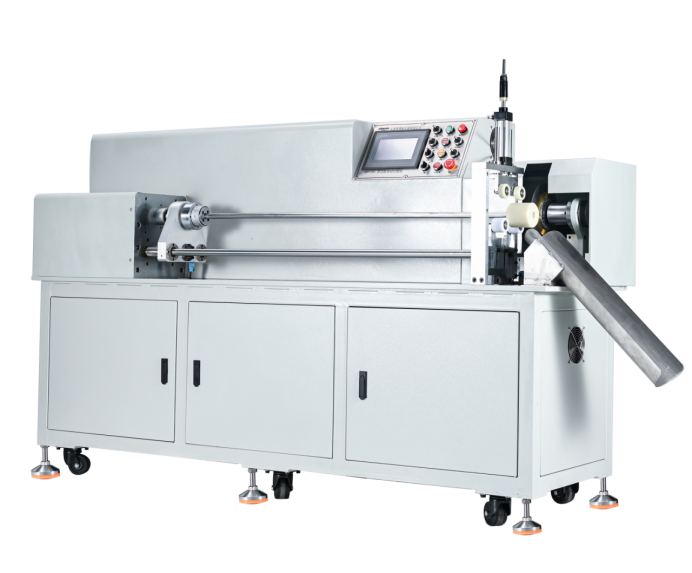

RK-AC1200 automatic paper tube cutter The machine is a special equipment for cutting paper core.It also canbe used for cutting PE pipes and PVC core Automatic core cutter is mainly used in printing, packaging and other industries.
FEATURES OF PERFORMANCE 1.Touch screen humanized design, convenient operation and stable performance; 2. It adopts PLC programming, full feeding system control, high-precision ball screw drive, and the cutting accuracy can be accurate to 0.2mm; 3. Fully automatic operation and production, automatic fault diagnosis and early warning to avoid damaging the machine; 4. High speed, high precision, smooth section, and multiple length specifications can be cut at one time. Main specifications and technical reference
Name:
RK-AC1200 automatic paper tube cutter
Model
RK-AC1200
Maximum distance of paper shaft
1200mm
Narrowest distance of paper cutting tube
20mm
Applicable paper core
1inch 1.5inch 3 inch
Applicable paper tube thickness:
2-6mm
Control system
PLC + servo motor
Feeding mode：
Manual
Paper core cutting speed:
The feed response speed is 0.3 s / tool (the pipe cutting length is different);
